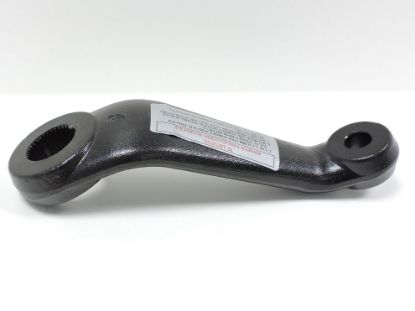

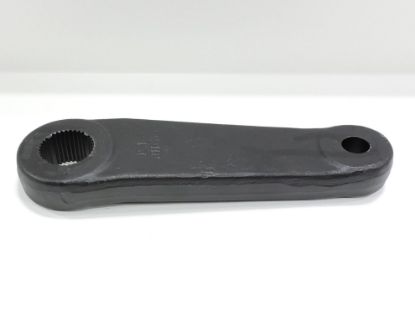

<strong>Part Number Fits:</strong> 1997-2000 Ford F-250 to F-550 Pickup Trucks, 2000 Excursion, or 1997-2003 Vans . <br /><br /></p> <p><span style="color: #ff0000;"><strong>Special Notes:</strong></span> Be sure to do a <span style="color: #ff0000;"><strong>spline peak count of your output or sector shaft</strong></span>, which indirectly connects to the tires, you should have a total of 32 splines. (Please view the third picture on the left, you will see you have 8 spline peaks between each master spline, and there is 4 master splines, so 8 times 4 = 32 splines) <br /><br />If you have a 36 spline sector shaft, please click on the following link to view: <strong><a style="text-decoration: underline;" href="https://redheadsteeringgears.com/product/2764BS/">2764BS</a> </strong><br /><br /></p> <p><strong>NEW:</strong> We now stock a pitman arm for this gear. Along with several other benefits, this also eliminates the need to remove your old pitman arm from your core. If you've ever struggled with pitman arm pullers breaking or had to resort to torches or cut-off wheels, this is the solution for you. Order a pitman arm from us and skip what is possibly the most challenging part of the installation! <a href="faq#buy-pitman" target="_blank" rel="noopener"><span style="text-decoration: underline;">Learn more about our pitman arms here.</span></a></p> <p> </p> <p><strong>Stock </strong>Pitman arm (Fits stock suspension or level lift kits up to 3.5 inches <strong>Truck Only</strong>): <span style="text-decoration: underline;"><strong><a href="PA-2764-pitman-arm" target="_blank" rel="noopener">PA-2764</a></strong></span><br /><strong>Drop </strong>Pitman arm (Fits suspension lifts of 4–6 inches): <span style="text-decoration: underline;"><strong><a href="dpa-2764-drop-pitman-arm" target="_blank" rel="noopener">DPA-2764</a></strong></span></p> <p> </p>">
Part Number: 2764 (4 Turns)
Product Fits: 1997-2000 Ford F-250 to F-550 Pickup Trucks, 2000 Excursion, or 1997-2003 Vans .
Please review our information regarding our 12-month warranty, core return instructions or bleeding instructions.
Weight | 30.00 lb(s) |
---|---|
Ratio | 18:1 / 4 Turns |
Input | Single flat with 27 splines |
Output | 32 Spline (Offset) |
Fittings | O-Ring |
