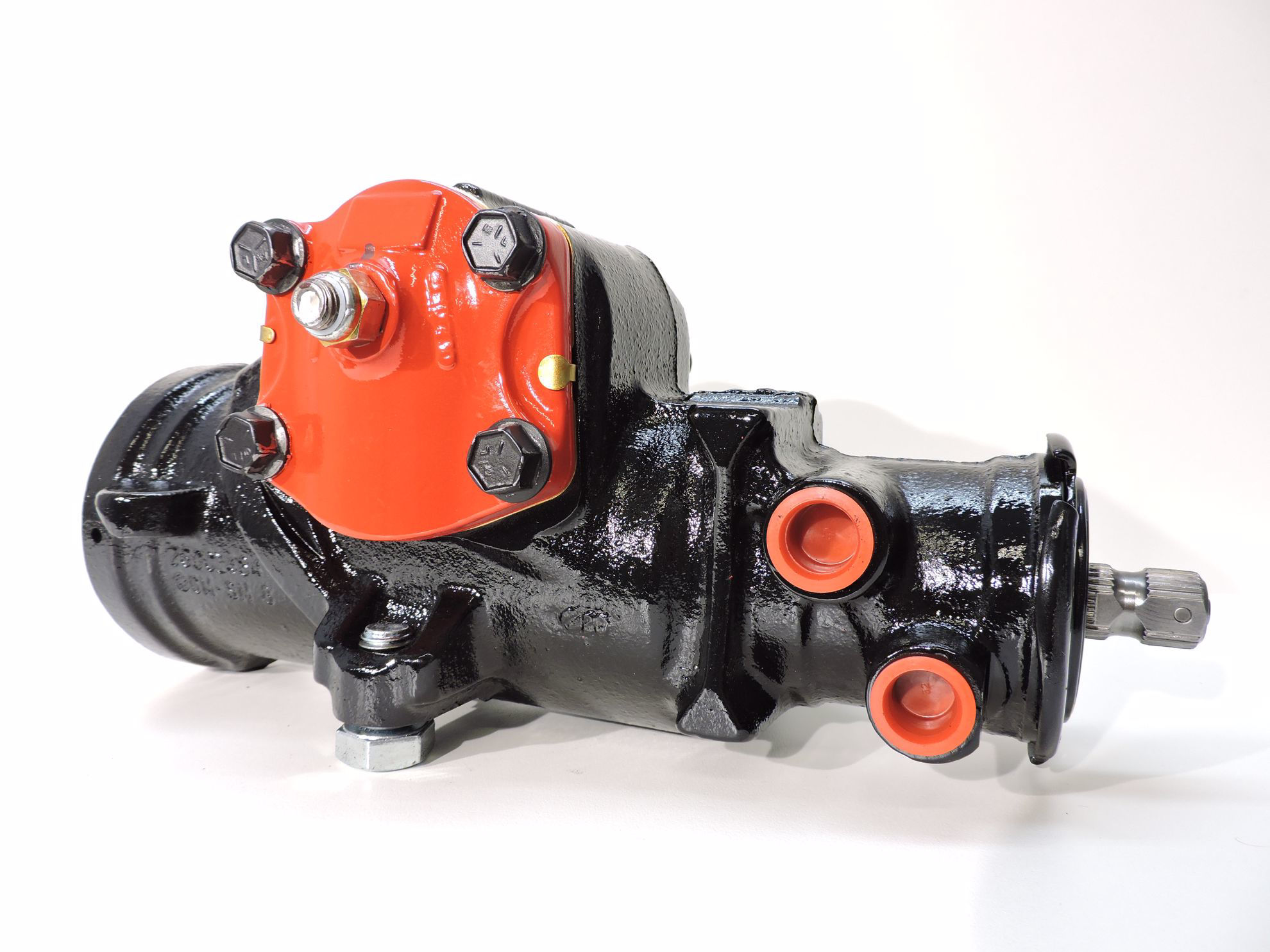

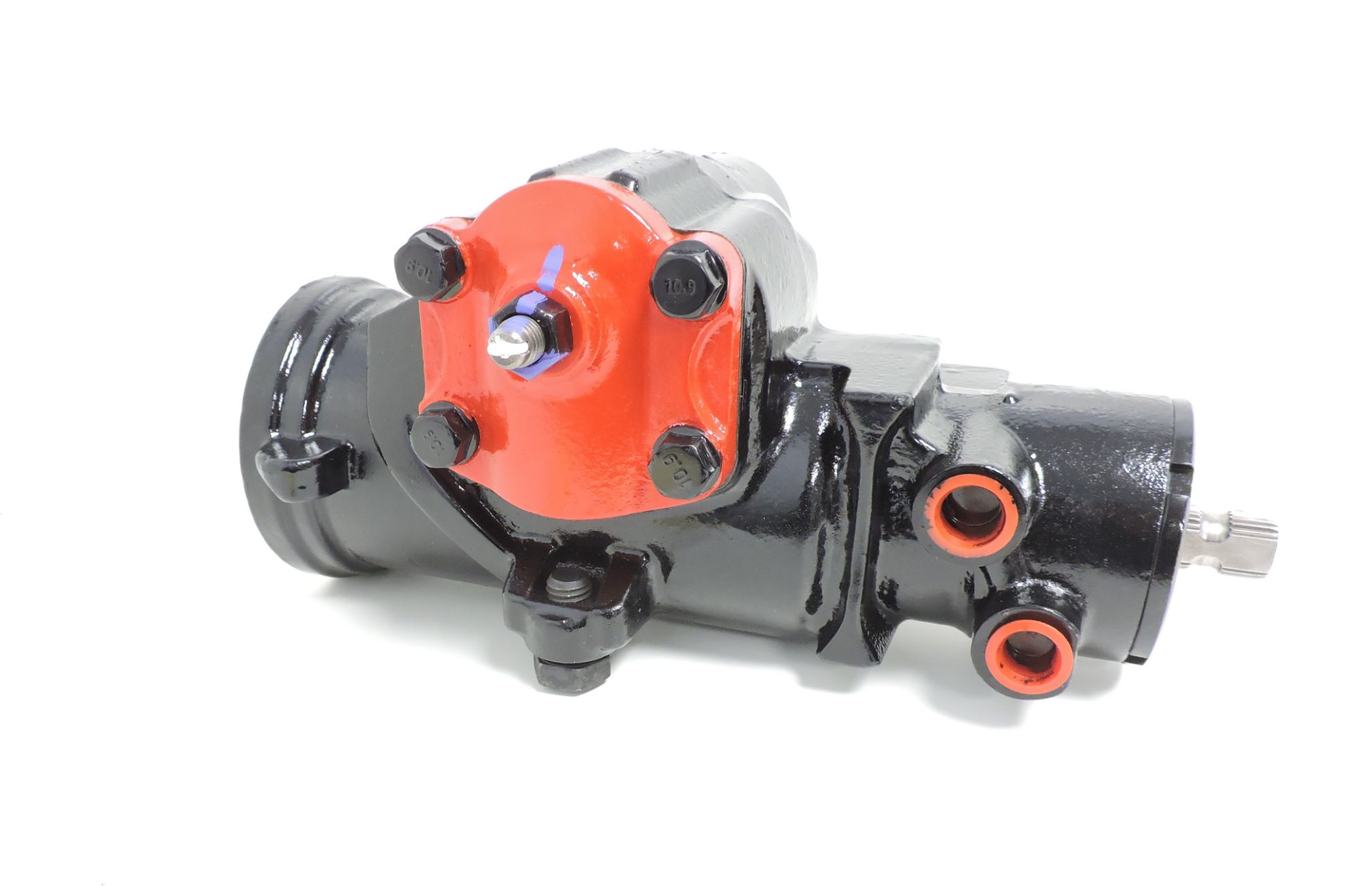

Part Number: 2869ND-4T (4-4.5 Turns).
Part Number Fits: 1994-2001 Dodge 1500 or 1994-2002 Dodge 2500-3500 Pickup Trucks.
If you need a gear box that is better designed, so it will be more reliable, this is the heavy duty gear box you need:
- Top Cover is made out of cast iron, versus aluminum, so it will be more durable
- Housing is more heavy duty than stock version
- Sector is made of more material, so there is more strength when turning under a heavy load
- Piston is larger, so will hold more fluid which will aide in steering control
- Control values used ball bearings, versus thrust bearings, so steering will be smoother, and more durable
Please Note: We now offer the frame stabilizers for this gear box, If you have a Dodge without a solid front axle please click on the following link to view: 32002
If you have a Dodge with a solid front axle please click on the following link to view: 32004
NEW: We now stock a pitman arm for this gear. Along with several other benefits, this also eliminates the need to remove your old pitman arm from your core. If you've ever struggled with pitman arm pullers breaking or had to resort to torches or cut-off wheels, this is the solution for you. Order a pitman arm from us and skip what is possibly the most challenging part of the installation! Learn more about our pitman arms here.
Stock Pitman arm (Fits 1994-1999 2WD Dodge Trucks with a GVW of 7,500 pounds with stock suspension or level lift kits up to 3.5 inches): PA-2869-2x4-7500
Stock Pitman arm (Fits 1994-1999 2WD Dodge Trucks with a GVW of 8,800 pounds with stock suspension or level lift kits up to 3.5 inches): PA-2869-2x4-8800
Stock Pitman arm (Fits 1994-1999 4WD Dodge Trucks with stock suspension or level lift kits up to 3.5 inches): PA-2869-4x4E
Drop Pitman arm (Fits 1994-1999 Dodge Trucks with suspension lift kits of 4-6 inches): DPA-2869E
Stock Pitman arm (Fits 2000-2002 2WD Dodge Trucks with stock suspension or level lift kits up to 3.5 inches): PA-2869-2x4
Stock Pitman arm (Fits 2000-2002 4WD Dodge Trucks with stock suspension or level lift kits up to 3.5 inches): PA-2869-4x4L
Drop Pitman arm (Fits 2000-2002 Dodge Trucks with suspension lift kits of 4-6 inches): DPA-2869L
Shipping costs vary.
Please Note: A $375 Core Charge will apply to sale price. Upon return of the core, charges will be refunded. Please see our core policy or call us for more information.
